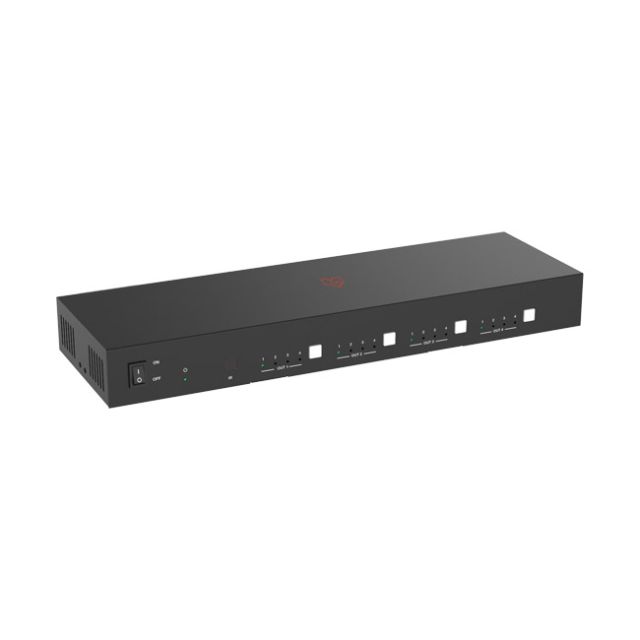

VigilLink 4x4 HDMI 2.0 Matrix over CAT (70m, 18Gbps)

VigilLink 4x4 HDMI 2.0 Matrix over CAT (70m, 18Gbps)
The 18Gbps 4x4 HDMI Matrix can connect four HDMI sources to eight displays. It features four HDMI outputs, and each HDMI output is mirrored to provide a Cat-Cable output that runs simultaneously. It supports video transmission (up to 1080p Full HD and 4Kx2K@60Hz 4:4:4) and HD digital audio formats such as LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio. Connect a Cat Receiver to each Cat-Cable output to extend the HDMI signal up to 230ft/70m for multi-room connectivity. Each HDMI output supports 4K2K to 1080P downscale independently. The product supports control via front panel buttons, IR remote, RS-232, LAN, and Web GUI.
Features
?? HDMI 2.0b and HDCP 2.2/1.x compliant?? Video resolution up to 4K2K@60Hz (YUV 4:4:4) on all HDMI & Cat ports?? 4 HDMI inputs, 4 HDMI & Cat mirrored outputs?? HDMI ports support 18Gbps lossless uncompressed video bandwidth?? Supports 4K->1080P Down Scaler for each output port?? HDR, HDR10, HDR10+, Dolby Vision, and HLG are supported?? Cat output can extend the transmission distance up to 230ft/70m via a single Cat6 cable?? HDMI audio pass-through up to 7.1CH HD audio (LPCM, Dolby TrueHD, and DTS-HD Master Audio)?? Advanced EDID management and CEC control are supported?? 12V PoC on all Cat ports?? Control via front panel buttons, IR remote, RS-232, LAN, and Web GUIPackage Contents
? 1 x 18Gbps 4x4 HDMI Matrix? 4 x Cat Receiver? 1 x Matrix IR Remote? 1 x 12V2.5A Power Supply?? 1 x RS-232 serial Cable (1.5 meters, male to female head)? 1 x 3-pin Phoenix Connector?? 4 x IR Blaster Cable (1.5 meters)?? 4 x IR Receiver Cable (1.5 meters)?? 10 x Mounting Ear (Matrix and Receiver)?? 1x User Manual
