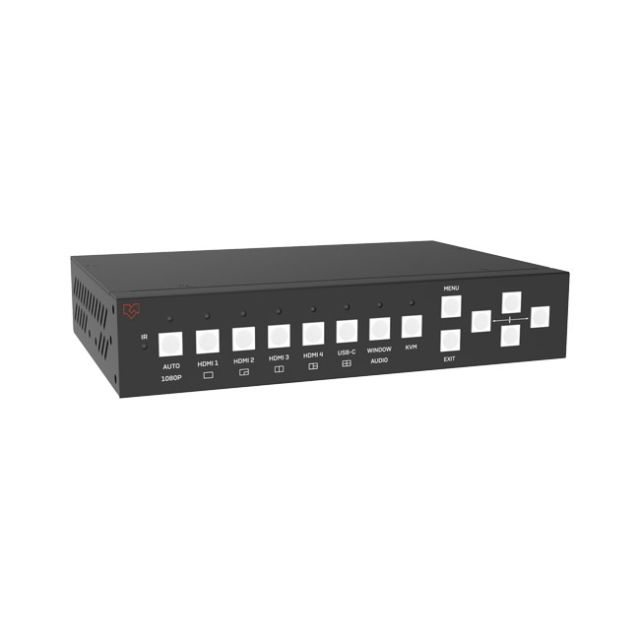

VigilLink 5x2 HDMI 2.0 Seamless Presentation Switcher with KVM/Dual HDMI Output

VigilLink 5x2 HDMI 2.0 Seamless Presentation Switcher with KVM/Dual HDMI Output
The 5x Inputs and 2x Outputs seamless multiview video switcher with USB- KVM control was developed for the purpose of multiple sources displayed on a single screen. It supports high input and output resolutions (up to 3840 x2160@60Hz).
The switcher can combine up to four video signals onto a single UHD or HD displayer.
The switcher supports 4x USB-Type B inputs which are connected to PC and 2x USB-Type A outputs which are connected to Mouse and Keyboard.
User can easily manage the switcher via the front panel buttons, IR remote, RS-232 or TCP/IP commands.The HDMI B mirror output port can be used for audio amplifier, video capture (with HDMI to USB dongle), or remote display (with HDBaseT Extender).
This multi-functional product can be widely applied in a variety of fields, such as Home Theatre, Video Conference, Security Monitoring, Presentation and Broadcasting, Teaching System, Financial Stock Analysis, Game E-Sports, Medical Display.
Features
?? HDMI 2.0b, HDCP 2.2 and HDCP 1.4 compliant?? Up to 4K2K@60Hz with 24-bit RGB/YCBCR 4:4:4?? Multiple output resolutions from 720p to 4K60?? 4x HDMI, 1x USB-C (AV only) inputs and 2x HDMI mirror outputs?? Up to 5 display modes: SINGLE, PIP, PBP, 3xWIN, 4xWIN?? Seamless switching on single display mode?? Fast switching on multiview display mode?? 4x USB KVM switcher with 2 USB devices for Mouse/Keyboard?? Support USB Roaming, hot-key to switch input?? Support volume control and independent audio selection?? Support LPCM, AC3, DD+, DTS, DTS-HD, up to 7.1 audio channel?? Support OSD navigation for advanced setting?? EDID management
Package Contents
? 1 x Seamless UHD Video Switcher? 1 x IR Remote? 1 x 4-pin Phoenix Connector (male)? 2 x Brackets?? 1 x 12V/3A Power Adapter? 1 x User Manual
