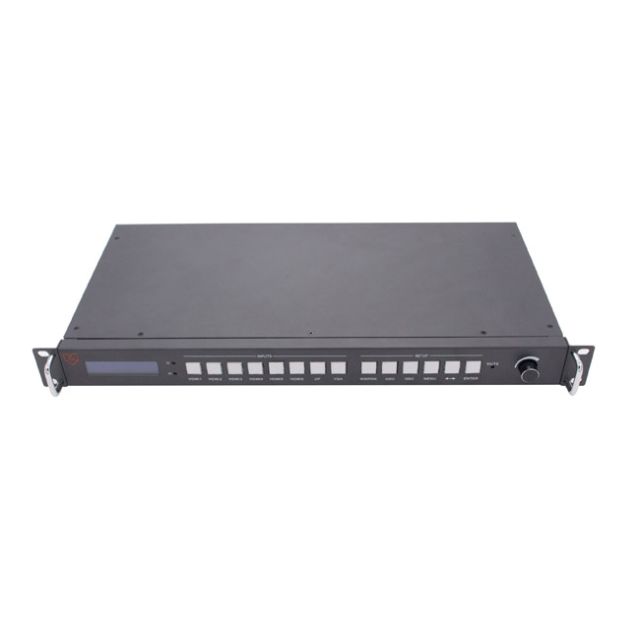

VigilLink 8x2 HDMI 2.0 Presentation Switcher

VigilLink 8x2 HDMI 2.0 Presentation Switcher
The 18Gbps 8x2 seamless UHD presentation switcher supports multi-format signal processing. Supported video resolution is up to 4K@60Hz 4:4:4. The product can scale the video, extract or embed the audio, and output the signal through 1 HDMI port and 1 HDBaseT port. For Audio output, there are 2x20W speaker output and balanced stereo audio output. The product supports EDID management.
Features
?? HDMI 2.0, HDCP 2.2 and DP 1.2 compliant?? Support 18 Gbps video bandwidth?? Support video resolution up to 4K@60Hz 4:4:4?? Mirrored output with HDMI and HDBaseT output ports?? The HDBaseT port can extend the transmission distance up to 70 meters(1080P) and 45 meters (4K@60Hz)?? Support seamless switching?? 8 video inputs: 6 HDMI ports, 1 DP port, 1 VGA port?? 9 audio source selections (LR1 to LR8 and embedded audio) for HDMI/DP input?? 8 Audio source selections (LR1 to LR8 ) for VGA video input?? Microphone mixing or independent function?? 3 Microphone modes: 48V (PHANTOM POWER) / MIC / LINE?? 2x20W speaker output and balanced audio output?? Speaker and Microphone volume can be controlled by front panel or PC Tool?? Support front panel, RS-232, TCP/IP (LAN 10M/100M) control?? IR IN/OUT and RS-232 IN/OUT are superimposed on HDBaseT transmission?? Support EDID management?? Additional IO function (2 outputs, 2 inputs)
Note: When VGA input is active, there is no seamless switching for this source.
Package Contents
? 1 x 8x2 Seamless UHD Presentation Switcher? 1 x HDBaseT Receiver? 1 x AC Power Cord? 1 x User Manual?? 2 x Mounting Ear & 2 x Handle? 12 x 3-pin Phoenix Connector?? 1 x 4-pin Phoenix Connector?? 1 x 5-pin Phoenix Connector?? 1 x IR Blaster Cable (1.5 meters)?? 1 x IR Receiver Cable (1.5 meters)
