Vigillink Avoip Controller For Vlip-H5HDk-Ec And Vlip-H5HDk-Dc

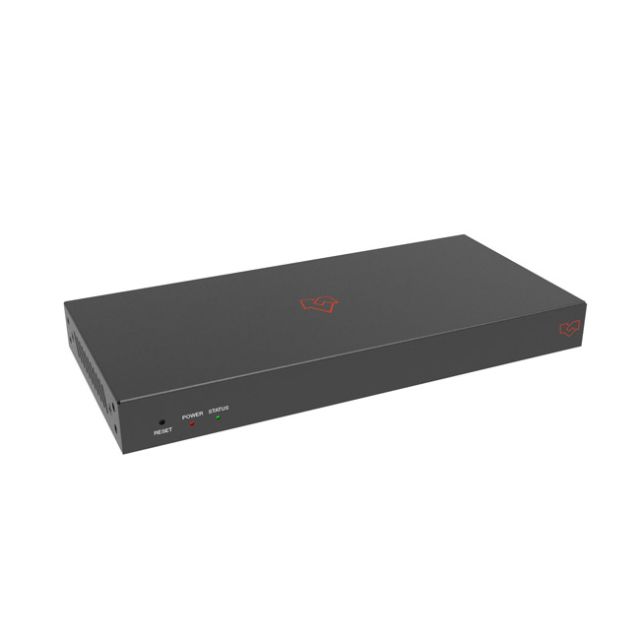

Vigillink Avoip Controller For Vlip-H5HDk-Ec And Vlip-H5HDk-Dc This Video Over IP Controller Is Used To Control And Manage H.264/H.265 IP Products. It Supports Dual 100M Network Ports, Which Can Realize Dual Network Isolation Of The Control Network And MULticast Video Distribution Network. It Has Its Own Built-In Web Gui, And Tcp And Rs-232 Control Are Supported. Supporting Poe Function And Wide Band 12V IR Signal ReCEiving. Featured Highlights Easy To Create Projects, Control, And Manage The System Https, Ssh Security Compatible Built-In Web Gui Control InterfacE, Supporting Drag & Drop Operations Supports Image Preview Supports Video, Audio, Rs-232, IR, Kvm Control, And Management Of The Distributed System Dual Network Ports (Video Lan Port Supports Poe Function) To Isolate Controls And MULticast Networks. Supports Lan/Rs-232 Port Control And ThIRd-Party CEntral Control Supports IR Signal ReCEiving (3.5mm Audio Jack, 12V Level) 4 Channel Gpio Control Ports (5V/12V Optional Level) MULtiple CIRcuits Protection, Lightning Protection, And Esd Design Reliable System Design, Ensuring 24/7 Usage Package Contents 1€¦¹ Video Over IP Controller 1€¦¹ 20Khz-60Khz 12V IR ReCEiver Cable (1.5 Meters) 1€¦¹ 3-Pin 3.81mm Phoenix Connector (Male) 1€¦¹ 6-Pin 3.81mm Phoenix Connector (Male) 2€¦¹ Mounting Ears 4€¦¹ Machine Screws (Km3*6) 1€¦¹ 12V/1A Locking Power Adaptor 1€¦¹ User Manual
