VigilLink G814 Quad Channel Edge Blender
Please confirm you understand this item is on backorder before adding it to your cart.
VigilLink G814 Quad Channel Edge Blender
Key Features
Description
Description

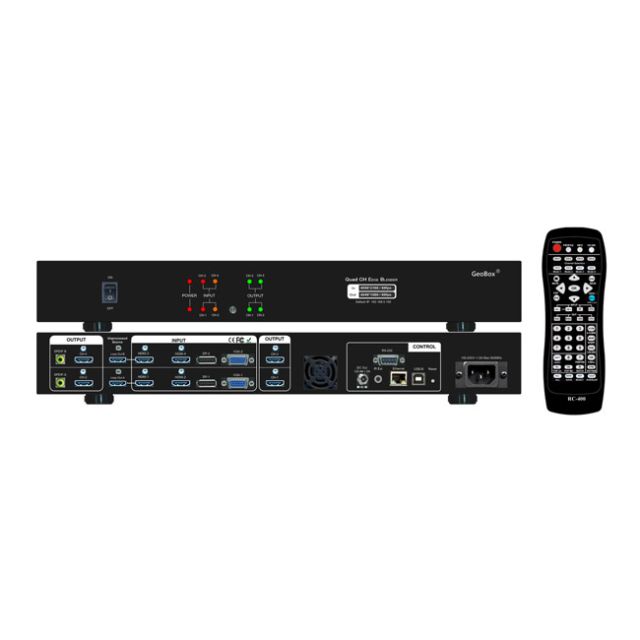

The VigilLink G814 is a quad-channel curved-screen edge blending processor built from two G812 modules, aimed at integrators running four-projector blended or stacked displays for simulation, digital signage, or projection mapping installs. It's built to replace the need for lens-shift projectors, PC-based blending software, or external splitters with a single self-contained hardware unit. Dual power supply options make it practical for both fixed installs and portable rigs.
- Quad-channel edge blending: Handles curved-screen blending, warping, stacking, and projection mapping for up to four projectors from one unit.
- 120x68 pixel warp control: Advanced warp technology aligns geometry via remote controller, WebGUI, USB, or Ethernet.
- 8 inputs, 4 HDMI outputs: Accepts 4x HDMI, 2x DisplayPort, and 2x VGA sources, with input up to 4096x2160@60Hz.
- Programmable EDID: Creates custom EDID timings from 1024x768 up to 3840x2400 for input compatibility.
- HDMI 2.0 daisy-chain loop-out: Cascades multiple units for larger displays up to 7680x1200@30Hz.
- Dual power supply: Runs on AC (100-240V) or DC (12V 2A) power, with a spare 12V 1A output for signal extension when on AC.
