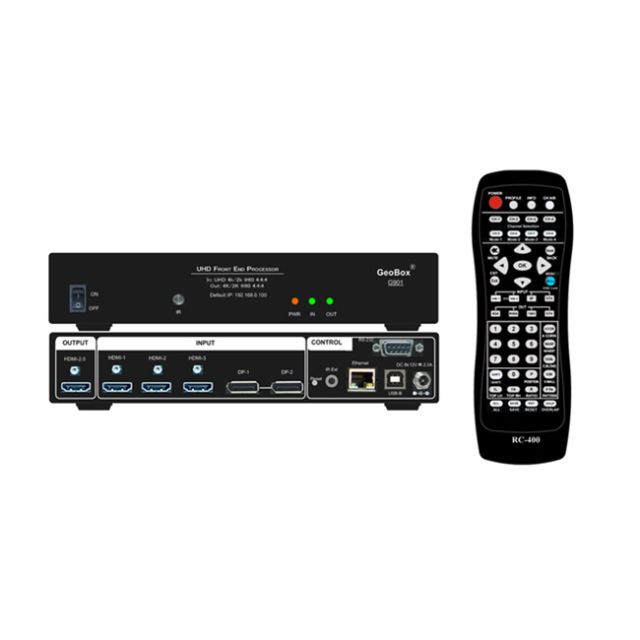

Vigillink G901 5X1 Seamless UHD Switcher With Quad Split Views

Vigillink G901 5X1 Seamless UHD Switcher With Quad Split Views The G901 Is A Versatile 3D ProCEssor That Supports Various 3D Input Signals, Including Side By Side, Top/Bottom, Frame Packed, Line Interleaved, And Frame Sequential Formats. For Passive 3D Display, It Decodes Input Signals Into Rh/Lh Output Format, And For active 3D And Other 3D Display DeviCEs, It Converts Input Signals Into Side By Side, Top/Bottom, Or Frame Sequential Output Formats. The G901 Can Even Handle Dual Camera Discrete Rh/Lh 3D Signals, Making It An Ideal Solution For Medical Endoscope Dual Camera And Line Interleaved 3D Format Display Issues. The Programm able Output Of The G901 Supports Resolutions Up To 4096X2267 @60Hz Or 7680X1234 @60Hz, With A Range Of 800-7680 (With 8 Pixel/Step Under 230Mhz, 16 Pixel/Step Above 230Mhz) In Horizontal And 600-3840 (With 1 Pixel/Step) In Vertical. The Maximum Resolution Is 600Mhz, And The Output Refresh Rate Can Be Selected From 24/30/50/60/100/120Hz. Standard Functions Of The G901 Include Pip (Picture In Picture) And Pop (Side By Side Or Top/Bottom), As Well As 3 Split View And 4 Split View MULti-Viewer Functions. With The Pop Or Top/Bottom Function, Users Can Easily Combine Discrete Rh/Lh 3D Signals Into 3D Side By Side Or Top/Bottom Formats For 3D Display. The G901 Can Be Operated And Configured Using An IR Controller, USB, Web Gui, Or Ethernet. Designed For 24/7 Working EnvIRonments, It Provides An Easy Configuration, Low Entry Barrier, And Cost-Effective, Reliable, And Flexible Solution For Your 3D ProCEssing Needs. Featured Highlights 5-In-1-Out MULti-Function Video ProCEssors (Seamless Switching, Scaling, Image Flip/Rotation/Cropping, 3D Format Conversion, And MULti-Viewer Functions) Ideal For Use As Seamless Switchers, Quad Split MULti-Viewers, And Front-End ProCEssors For Large Display Systems
