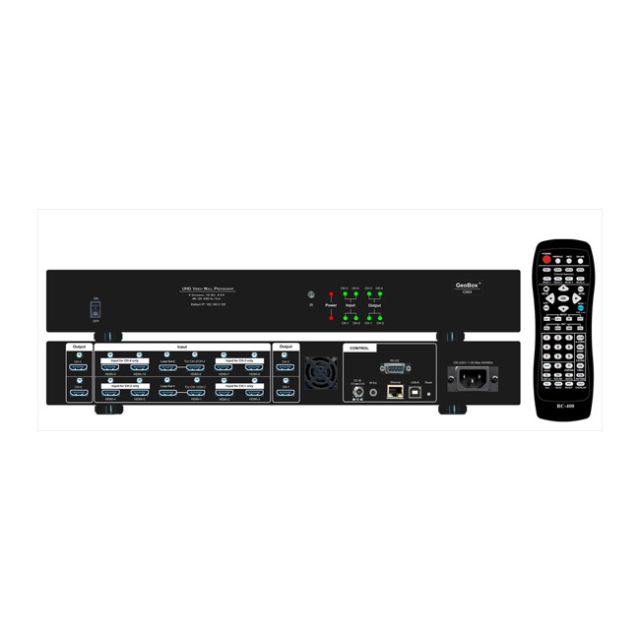

VigilLink G904 UHD Video Wall Controller

The VigilLink G904 is a four-channel UHD video wall controller for large-format LCD and LED display installations that need independent 4K processing per output. Each of its four channels accepts up to three HDMI 2.0 inputs and outputs 4K at 60Hz, with built-in cropping, overlap, and rotation tools for building creative video walls in either landscape or portrait orientation. It's aimed at integrators running 24/7 display installations who need reliable multi-viewer and PIP/POP functionality without a separate processor.

• Four Independent 4K/60Hz Channels: Each channel handles its own 4K input and output for true per-panel processing.
• Video Wall Crop and Overlap: Adjusts image position and overlap up to ±1800 pixels per edge for seamless multi-display arrays.
• Independent Image Rotation: Each channel supports 90/180/270-degree rotation for landscape or portrait video walls.
• HDMI 2.0 Daisy-Chain Loop-Out: Two loop-out ports cascade multiple units for larger-scale display systems.
• PIP/POP Multi-Viewer: Displays up to 7 images on one monitor through 3-split and 4-split multiviewer modes.
• 10-Bit Processing Engine: Includes motion-adaptive de-interlacing and programmable EDID for optimized input handling.
