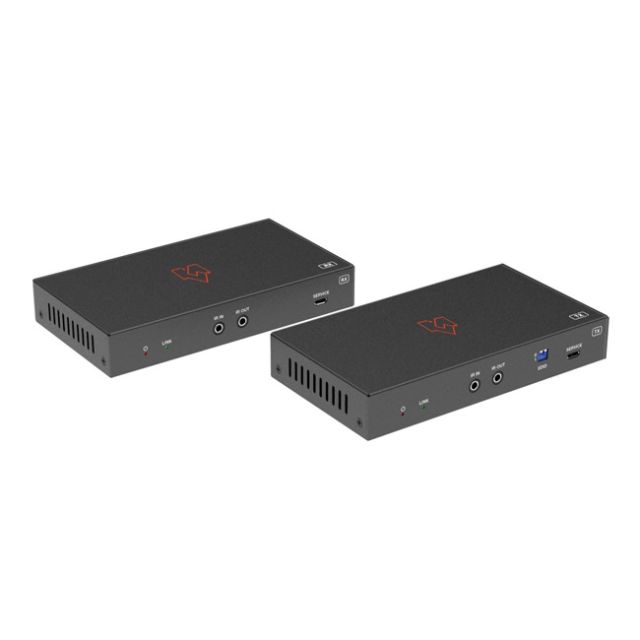

VigilLink HDBaseT 3.0 4K@60Hz 4:4:4 HDMI 2.0 Extender (40m, USB-VS300R)

VigilLink HDBaseT 3.0 4K@60Hz 4:4:4 HDMI 2.0 Extender (40m, USB-VS300R)
Introducing the 18Gbps HDBaseT 3.0 Extender, engineered to effortlessly extend uncompressed HDMI/USB-C signals, bi-directional IR, RS-232, and USB 2.0 signals across distances of up to 230ft/70m (4K30/1080P) or 131ft/40m (4K60) with just a single CAT6A/7 cable. With support for video resolutions up to 4K2K@60Hz YUV 4:4:4, this extender ensures crystal-clear visuals. The transmitter boasts 1x HDMI input, 1x USB-C input (60W charging), 1x USB Host, and 3x USB Device ports, while the receiver features 1x HDMI output and 2x USB Device ports. Both units support 3.5mm analog audio de-embedding, EDID management, bi-directional IR, and RS-232 signal pass-through. Plus, enjoy the convenience of a bi-directional 24V POC function. Ideal for home and commercial settings, this extender offers seamless integration and long-distance capability, delivering a hassle-free solution for video extension via a single CAT cable.
Featured Highlights

Compliant with HDMI 2.0b and HDCP 2.3, 18Gbps video bandwidth
HDBaseT 3.0 VS300R chipset based design
Supports video resolution up to 4K2K@60Hz (YUV 4:4:4)
Uncompressed video signal transmission distance can be extended up to 230ft/70m for 4K@30Hz, or 131ft/40m for 4K@60Hz over a single CAT6A/7 cable
TX features with 1x HDMI input, 1x USB-C input, 1x HDBT output, 1x USB 2.0 host and 3x USB 2.0 clients
RX features with 1x HDMI output, 2x USB 2.0 clients
USB-C and HDMI signal inputs support auto or manual switching mode
Auto switching supports HDMI 5V or signal detection selection
USB-C supports DP-ALT mode for A/V, USB 2.0 data, and power charging up to 60 watts
TX/RX USB-A client ports VBUS on or off depending on USB host is connected or not
HDR, HDR10, HDR10+, Dolby Vision LLM and HLG pass-through
4K to 1080p downscaling features on HDMI output, no frame rate conversion
Both TX and RX support analog audio de-embedding
RS-232 signal pass-through and guest-mode control
Supports bi-directional IR signal pass-through, USB 2.0 signal transmission
Advanced EDID management
Each USB-A port provides power up to 5V/500mA
Supports bi-directional 24V POC, with POC switch
Compact design for easy and flexible installation? ? ? ?

Package Contents
1?? HDBaseT 3.0 Extender (Transmitter)
1?? HDBaseT 3.0 Extender (Receiver)
1?? IR Blaster Cable (1.5 meters)
1?? IR Receiver Cable (1.5 meters)
2?? 3pin-3.81mm Phoenix Connectors (Male)
4?? Mounting Ears
8?? Machine Screws (KM3*4)
1?? 24V/1A Locking Power Adapter
1?? User Manual
