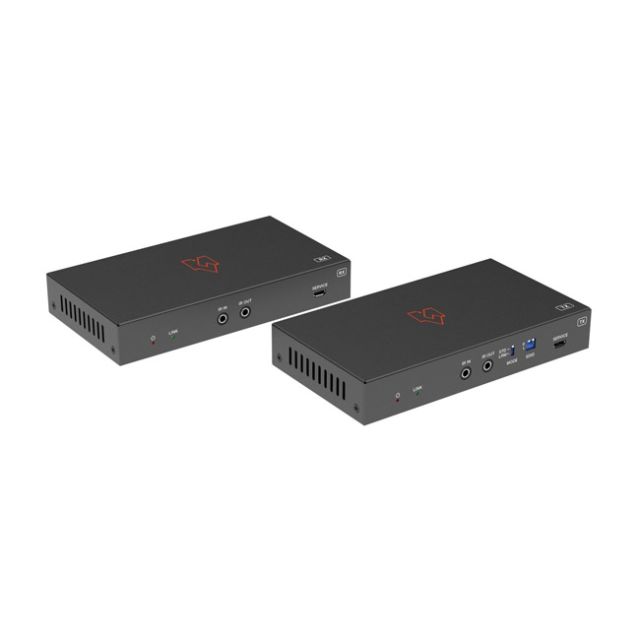

VigilLink HDBaseT 3.0 4K@60Hz 4:4:4 HDMI 2.0 Extender with EARC (100m, 18Gbps)

VigilLink HDBaseT 3.0 4K@60Hz 4:4:4 HDMI 2.0 Extender with EARC (100m, 18Gbps)
This HDBaseT 3.0 Extender, boasting an impressive 18Gbps bandwidth, offers seamless extension of uncompressed HD/UHD video and audio signals, along with RS-232, bi-directional IR, and USB 2.0 signals, all up to 328ft / 100m using just a single CAT6A/7 cable. It supports video resolutions of up to 4K2K@60Hz YUV 4:4:4. The Transmitter features HDMI input and audio de-embedding capabilities, while the Receiver supports HDMI output and audio de-embedding. With bi-directional RS-232 and IR signal pass-through, EDID management, USB 2.0 signal transmission, and bi-directional POC function, this Extender provides versatility and convenience. Additionally, the Transmitter offers the flexibility to switch between HDBT Standard Mode (as factory default) and HDBT Long Reach Mode.
Offering unparalleled convenience and long-distance capability, this Extender is the ideal solution for both home and commercial applications.
Featured Highlights

HDMI 2.0b and HDCP 2.2 compliant
Supports 18Gbps video bandwidth
Supports video resolution up to 4K2K@60Hz (YUV 4:4:4)
HDR, HDR10, HDR10+, Dolby Vision LLM and HLG pass-through
LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD pass-through
4K transmission distance up to 328ft/100m via a single CAT6A/7 cable (HDBT standard mode)
1080P transmission distance up to 492ft/150m via a single CAT6/6A/7 cable (HDBT extended reach mode)
Supports bidirectional POC (Power over Cable); when TX or RX gets power, the other end does not need an external power supply
Supports 3.5mm analog audio de-embedding at TX and RX
EDID management
Supports bi-directional RS-232 signal pass-through, bi-directional IR signal control, USB2.0 signal transmission
Compact design for easy and flexible installation? ? ? ?

Package Contents
1?? HDBaseT 3.0 Extender (Transmitter)
1?? HDBaseT 3.0 Extender (Receiver)
1?? IR Blaster Cable (1.5 meters)
1?? IR Receiver Cable (1.5 meters)
2?? 3pin-3.81mm Phoenix Connectors (Male)
4?? Mounting Ears
8?? Machine Screws (KM3*4)
1?? 24V/1A Locking Power Adapter
1?? User Manual
