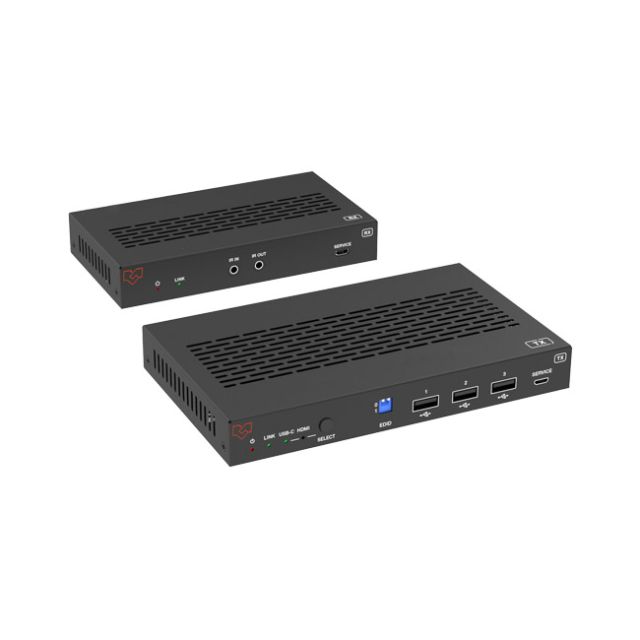

Vigillink HDbaset 3.0 4K@60Hz 4:4:4 USB-C/HDMI 2.0 Extender With USB (70M, 18Gbps)

Vigillink HDbaset 3.0 4K@60Hz 4:4:4 USB-C/HDMI 2.0 Extender With USB (70M, 18Gbps) This 18Gbps HDbaset 3.0 Extender Can Extend Uncompressed HDMI/USB-C Signals, Bi-DIRectional IR, Rs-232, And USB 2.0 Signals Up To 230Ft/70M (4K30/ 1080P) Or 131Ft /40M (4K60) Via A Single Cat6A/7 Cable. Video Resolution Is Up To 4K2K@60Hz Yuv 4:4:4. The Transmitter Features 1X HDMI Input, 1X USB-C Input (60W Charging), 1X USB Host, And 3X USB DeviCE Ports. The ReCEiver Features 1X HDMI Output And 2X USB DeviCE Ports. Both Transmitter And ReCEiver Support 3.5mm Analog Audio De-Embedding, Edid Management, Bi-DIRectional IR, And Rs-232 Signal Pass-Through. This Product Supports A Bi-DIRectional 24V Poc Function. The Extender Offers The Most Convenient Solution For Video Extension Via A Single Cat Cable With Long-DistanCE Capability, And It Is Perfect For Home And Comm ercial Applications. Featured Highlights Compliant With HDMI 2.0B And HDcp 2.3, 18Gbps Video Bandwidth HDbaset 3.0 Vs300R Chipset Based Design Supports Video Resolution Up To 4K2K@60Hz (Yuv 4:4:4) Uncompressed Video Signal Transmission DistanCE Can Be Extended Up To 230Ft/70M For 4K@30Hz, Or 131Ft/40M For 4K@60Hz Over A Single Cat6A/7 Cable Tx Features With 1X HDMI Input, 1X USB-C Input, 1X HDbt Output, 1X USB 2.0 Host And 3X USB 2.0 Clients Rx Features With 1X HDMI Output, 2X USB 2.0 Clients USB-C And HDMI Signal Inputs Support Auto Or Manual Switching Mode Auto Switching Supports HDMI 5V Or Signal Detection Selection USB-C Supports Dp-Alt Mode For A/V, USB 2.0 Data, And Power Charging Up To 60 Watts Tx/Rx USB-A Client Ports Vbus On Or Off DepeNDIng On USB Host Is Connected Or Not HDr, HDr10, HDr10+, Dolby Vision Llm And Hlg Pass-Through 4K To 1080P Downscaling Features On HDMI Output, No Frame Rate Conversion Both Tx And Rx Support Analog Audio De-Embedding Rs-232 Signal Pass-Through And Guest-Mode Control Supports Bi-DIRectional IR Signal Pass-Through, USB 2.0 Signal Transmission AdvanCEd Edid Management Each USB-A Port Provides Power Up To 5V/500Ma Supports Bi-DIRectional 24V Poc, With Poc Switch Compact Design For Easy And Flexible Installation Package Contents 1À” 18Gbps HDMI/USB-C Over HDbaset 3.0 Extender (Transmitter) 1À” 18Gbps HDMI/USB-C Over HDbaset 3.0 Extender (ReCEiver) 1À” IR Blaster Cable (1.5 Meters) 1À” IR Wideband ReCEiver Cable (1.5 Meters) 2À” 3Pin-3.81mm Phoenix Connector (Male) 4À” Mounting Ear 8À” Machine Screw (Km3*4) 1À” 24V/3.75A Desktop Power Supply 1À” User Manual
