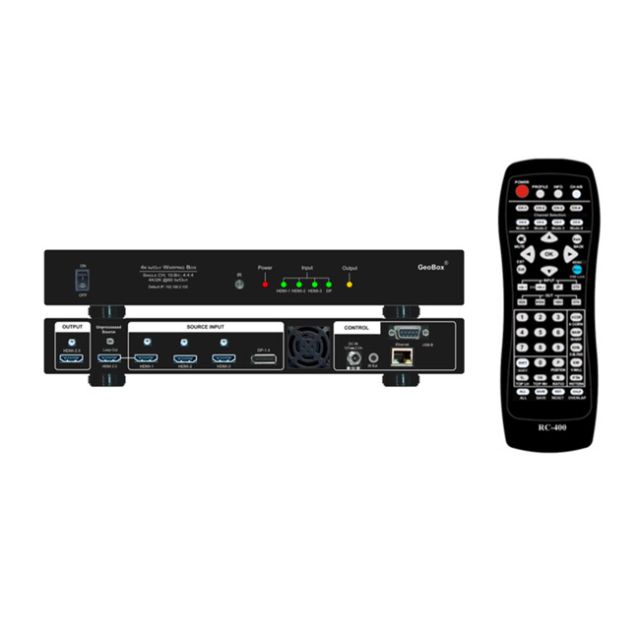

VigilLink M811 Lite (M811L) Warping Box

The VigilLink M811 Lite (M811L) Warping Box is an edge-blending and geometry-correction processor built for projector-based displays that need precise alignment across curved screens, corners, or multi-projector arrays. It's aimed at AV integrators handling video walls, simulators, and immersive installations who need advanced warp control without a full production switcher. Up to 120x68 control points give fine-grained geometry correction for complex surfaces.

• 4 Inputs, up to 7680x2160@30Hz: Accepts 2x HDMI, 1x DP, and 1x VGA inputs, supporting digital input up to 7680x2160@30Hz or 5760x1200@60Hz at 4:4:4 chroma.
• Up to 120x68 Warp Control Points: Advanced warp technology supports up to 120x68 control points for edge blending and geometry alignment, plus 17x9 points for linearity grid adjustment.
• Built-In Video Wall Function: Splits and allocates source imagery across a video wall without needing a separate image splitter.
• PIP/POP with Flexible Sizing: Picture-in-picture sizing adjusts from 320x180 to 1920x1200 with flexible position, aspect ratio, and cropping.
• 4K HDMI Loop for Daisy Chaining: An HDMI loop output supports daisy-chaining multiple units for larger multi-unit installations.
• IR, USB, Web, or Ethernet Control: Configurable via IR remote, USB, a web page, or Ethernet.
