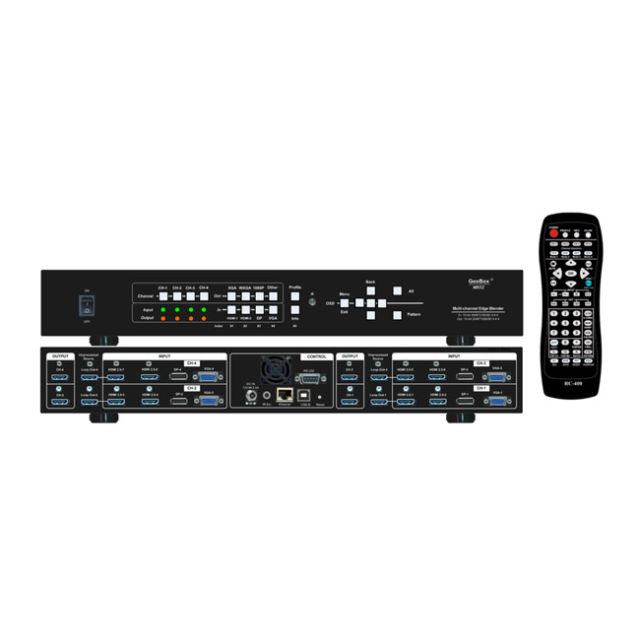

VigilLink M814 Edge Blending Processor

The VigilLink M814 is an edge blending and geometry alignment processor from VigilLink's M810 series, built for simulation, immersive, and classroom installs running multiple projectors that need to blend into one seamless image. It's aimed at integrators who want curved and flat edge blending handled in dedicated hardware rather than a PC running blending software, since the unit is designed for 24/7 continuous operation. Multiple PIP/POP configurations let the same processor support a range of 3-projector blending layouts.

• 120x68 warp control points: Advanced warp technology handles precise geometry alignment and edge blending via IR controller, USB, WebGUI, or Ethernet.
• Four input, one output per module: Each module accepts 2x HDMI, 1x DisplayPort, and 1x VGA, with digital input up to 7680x2160@30Hz.
• HDMI daisy-chain without a splitter: Cascades units for larger displays up to 8K/2K@30Hz or 8K/1K@60Hz.
• Flexible 3-projector configurations: Supports 1+1+1 independent, 1+2 blended, or all-in-one three-projector blended display setups.
• Built-in video wall function: Crops and allocates source images per projector and sets overlap pixels for seamless blending.
• Designed for 24/7 operation: Built for continuous-duty simulation and immersive display applications.
