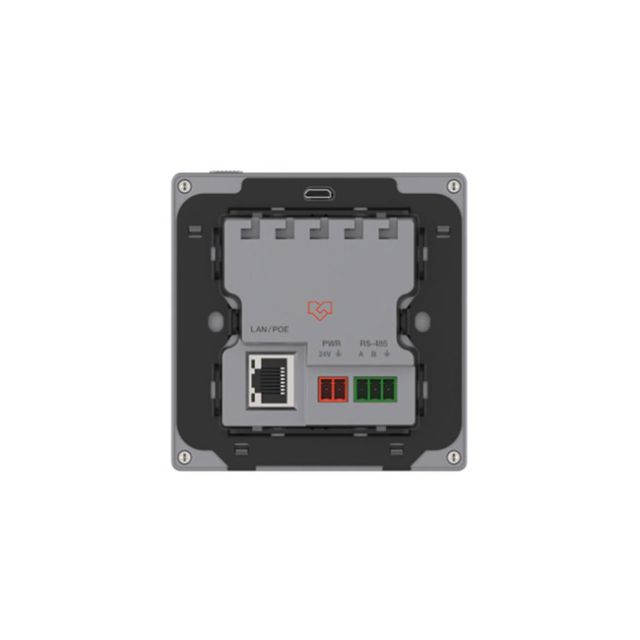

VigilLink Programmable Touch Screen Control Panel (Wall-plate)

VigilLink Programmable Touch Screen Control Panel (Wall-plate)
The programmable touch screen control panel is designed to be utilized in the sectors of automated office system, multi-media room and smart home. With a programmable interactive user interface over configuration protocols, the integrated system provides intelligent networking service. The control panel wall-plate (standard 86 box design) is equipped with a capacitive touch screen with a resolution of 720*720, and it supports one RS-485 serial port. It is used in a diverse range of installations and applications across industries including multi-media conference rooms, multi- functional halls, training centers, show room, broadcasting studios and industrial automation.
Featured Highlights

ARM Cortex-A53 architecture 1.8Ghz main frequency
Android 9.0 system, 8GB Emmc Flash, 2GB DDR4 RAM
720*720 (1:1) resolution, standard 86 box wall-plate design
One machine with two modes can be used as touch screen central control or user terminal
Support one RS-485 communication serial port, which is capable of configuring 8 baud rates in the range of 2400-115200bps
Support access to the host system management web page with a password
Compliant with industry-standard network communication protocols (TCP/IP, HTTP, UDP, Websocket)
With 1 Gigabit network port, the highest rate is up to 1G/bps
Support POE function or independent DC 24V/1A power supply
Interface and function configuration via central control software
Support remote control, remote O&M, and online upgrade
Support factory reset
