VigilLink 4x2 UHD Quad View Processor with Seamless Switcher

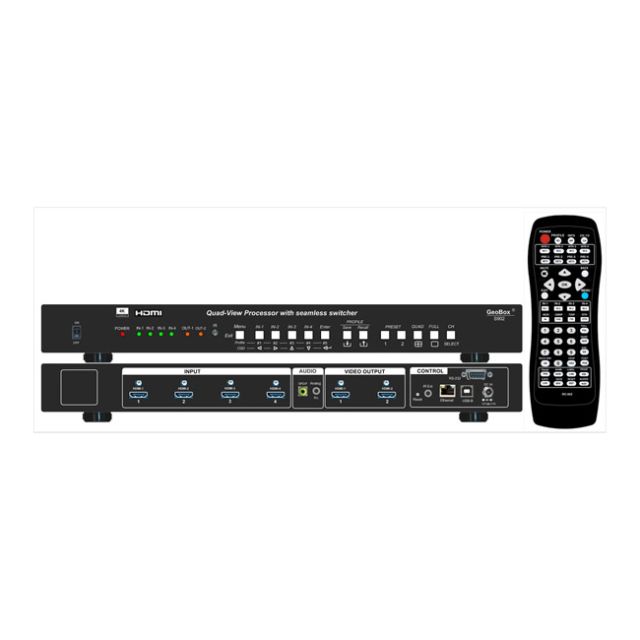

VigilLink 4x2 UHD Quad View Processor with Seamless Switcher The S902 is a 4x2 UHD Quad-View processor that allows users to display up to four 4 K/60 sources simultaneously on one or two UHD displays. This device offers a highly flexible and cost-effective solution for routing up to four 4 K/60 sources to two separate displays simultaneously. Users can customize their display mode by choosing from 12 default multi-view layout presets and 20 custom Profile Presets. Featuring 4 HDMI 2.0 inputs and 2 HDMI 2.0 outputs, the S902 supports CEA video standard timings up to 4096*2160 @60Hz with 4:4:4 chroma sampling. Each output port can accommodate up to 4 windows, each capable of selecting an input source from any input port. Users can assign the same input source to multiple windows and adjust each window's input selection, image positioning, resizing, cropping, and color settings. Users can prioritize display windows when they overlap and select one or multiple windows with the same configuration for any output port. The device offers 16 transition modes, including high-speed seamless switching, Fade-in, Fade-out, Dissolve, and Wipe, with selectable duration for transitions. It integrates HDMI-embedded audio, RCA SPDIF digital audio, and analog 3.5mm R/L audio jack R/L, allowing users to assign audio from input ports to each output port as needed. The unit's control options include an IR controller, a front-panel push button, USB, WebUI, and Ethernet, providing versatile control methods for various applications. Users can recall up to 20 custom Profile Presets through different control systems. Designed for continuous operation in a 24/7 environment, the S902 offers easy configuration, low entry barriers, cost-effectiveness, reliability, and flexibility for various applications. Application Digital signage Security & surveillance systems Education Conference room Presentation halls Video content post-production Video editing studio Featured Highlights
