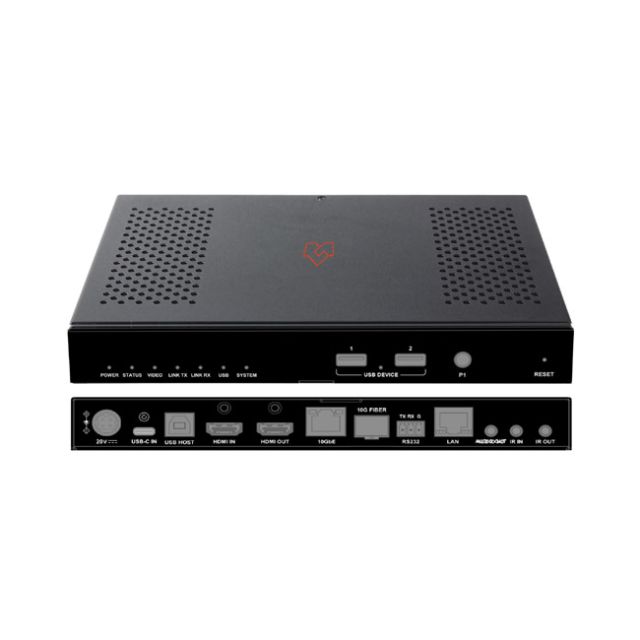

VigilLink SDVoE Transceiver over Copper/Fiber With Switching USB-C (Video & USB 2.0) and HDMI Inputs

VigilLink SDVoE Transceiver over Copper/Fiber With Switching USB-C (Video & USB 2.0) and HDMI Inputs
This transceiver is an SDVoE-Compliant, All-In-One AV over IP solution that provides the highest-quality, uncompressed 4K and zero-frame audio/ video extension over a standard 10G Copper Network Switch with instant switching, Video Wall, and Multiview functions. It can transfer advanced HDMI content such as HDR (high dynamic range), full-color depth, and multi-channel HD Bitstream audio. A flexible transceiver design (one box can be set to encoder or decoder) is much more convenient in an installation site and inventory control. Integrated 2 channel Dante allows for the audio to be sent to a distributed audio system. Multiple control and data signals can be simultaneously transmitted with audio and video, including bi-directional IR, RS-232, USB KVM, CEC, and 1G Ethernet.
Feature Highlights:

Support the input/output timing of up to 4096x2160@60Hz, 3840x2160@60Hz (4:4:4) and 3840x2160@ 60Hz (4:2:0 10-bit HDR)
Between the device and the Ethernet switch or the transmitter/receiver/transceiver, the maximum transport distance is 100m (copper port) or 300m (fiber port)
The minimum end to end latency is less than 120?s
Switch the 10G Ethernet interface between the copper and fiber ports dynamically
Maximum video wall scale is 16x16 (4k source and FHD display)
Multi-view feature supports up to 16 windows
Supports Dolby Vision, HLG and HDR10 video (Genlocked mode)
Supports eARC/ARC on HDMI input and output
POE+ power
Two optional USB extension solutions:a) USB HID only (12 Mbs)b) Full feature USB 2.0 high speed 480Mbs utilizing Icron Technology
