VigilLink 10G SDVoE 4K60 4:4:4 AVoIP Fiber Transceiver with Videowall, Multiview and USB 2.0

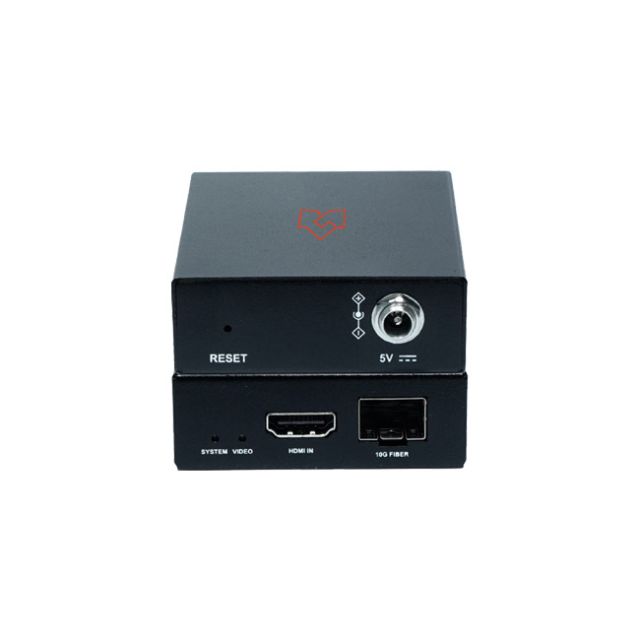

VigilLink 10G SDVoE 4K60 4:4:4 AVoIP Fiber Transceiver with Videowall, Multiview and USB 2.0 Experience seamless AV signal distribution with the VLIP-SDFR-TX and VLIP-SDFR-RX extenders. Powered by SDVoE technology, these compact devices support true 4K/60Hz video with zero frame latency over 100 meters. Its ultra-small size (87mm x 64mm x 22mm) allows easy installation even in tight spaces. These extenders can be used in a point to point configuration, or connected to a 10G network switch along with a controller for full asymmetrical matrix capabilities. Featured Highlights Compact size and economical design HDMI 2.0 and HDCP 2.2 compliant Lossless distribution of most timing formats Light compression with the raw data rate exceeding 10Gb Ethernet bandwidth Supports input and output resolutions up to 4096x2160@60Hz 8-bit 4:4:4, 4096x2160@60Hz 10-bit 4:4:4 and 4096x2160@60Hz12-bit 4:2:0 HDR Supports point-to-point transmission of 4K signal at the distance up to 300m Supports point-to-multipoint, multipoint-to-multipoint transmission via 10GbE switch at the distance of up to 300m (between a device and the switch) Zero-frame latency Required bandwidth: 6~8 Gbps for 4K, 3.2 Gbps for 1080P Compatible with Semtech BlueRiver AV Manager Package Contents 1x VLIP-SDFR-TX 1x 5VDC 2A Power Adapter (with US Pins) 1x Optical transceiver 2x Mounting Brackets (with Screws)
