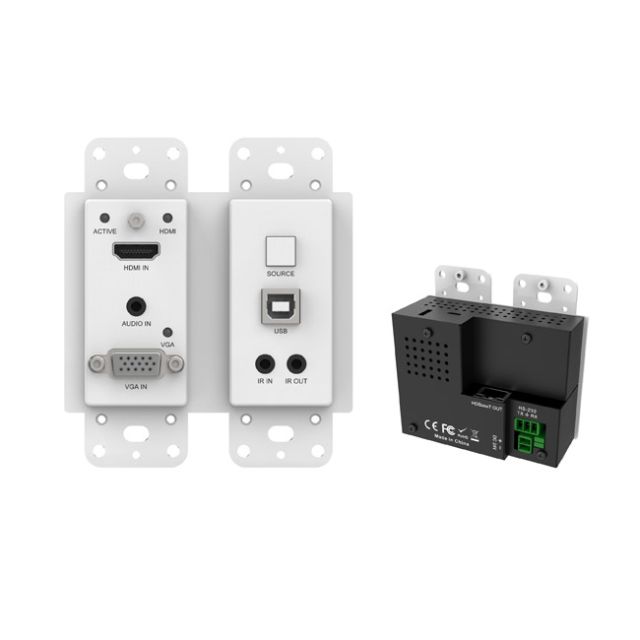

VigilLink 18Gbps 2x1 HDMI/VGA Wall Plate Transmitter with Auto-Switching (40m, White)
Please confirm you understand this item is on backorder before adding it to your cart.
VigilLink 18Gbps 2x1 HDMI/VGA Wall Plate Transmitter with Auto-Swit...
Key Features
Description
Description
This VigilLink wall plate combines an HDMI/VGA auto-switcher with an HDBaseT transmitter in a standard 2-gang Decora enclosure, letting installers send 4K video, audio, and control signals from a wall plate to a remote receiver over a single Cat cable. It's built for classrooms and conference rooms where both legacy VGA and modern HDMI sources need to reach the same display. Built-in VGA scaling and two-way IR, RS-232, and USB pass-through mean the wall plate handles both signal conversion and device control from one location.
- HDMI and VGA auto-switching: Automatically selects between HDMI and VGA sources, with built-in scaling for VGA input.
- 4K2K@60Hz over 40m: Reaches 131ft/40m at full 4:4:4 4K, or 230ft/70m at 1080p60, over CAT6/6a/7 cable.
- Two-way IR, RS-232, and USB pass-through: Supports remote device control alongside the video signal.
- Up to 7.1 channel HD audio: Passes multi-channel HDMI audio through the same connection.
- 24V PoC powered: Draws power over the cable, simplifying wall-plate installation.
